Coming Soon: NV4500 Swap Ecosystem for Duramax Applications

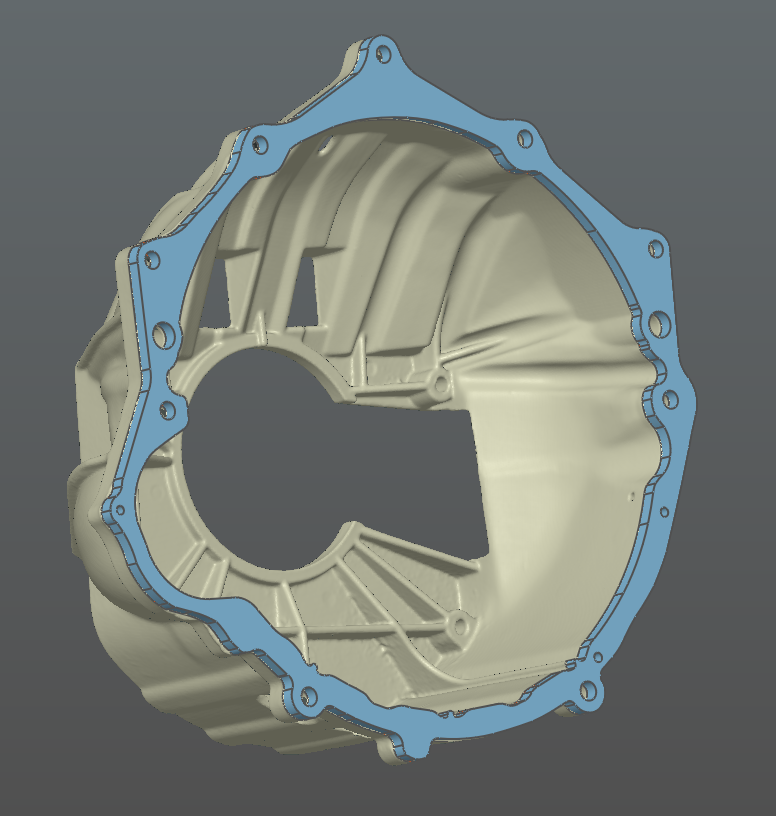

NV4500 to 2001 - 2017 Duramax bellhousing adaptor desinged from direct 3D scans.
Some projects start as an idea. Others start because the solution simply doesn’t exist.
At Lambert Performance Labs, we’ve spent countless hours studying manual transmission conversion options for Duramax platforms and kept coming back to the same conclusion: builders deserved a solution that felt engineered — not adapted.
That’s why we’ve been developing our complete NV4500 swap ecosystem for Duramax applications.
And we’re getting close.
Built Around Serviceability, Not Compromise
From the beginning, our goal wasn’t to create another swap that required extensive input shaft modification, clutch throwout bearing fabrication, or sourcing hard-to-find specialty components.
We wanted something that just works like it should.
The LPL NV4500 system is being engineered to install with minimal invasive changes and without dramatic fabrication, while preserving OEM drivability and making future maintenance straightforward.
Even more importantly, we designed the system around readily available over-the-counter components sourced from GM and Dodge applications wherever possible.
No proprietary wear items. No impossible-to-source custom pieces.

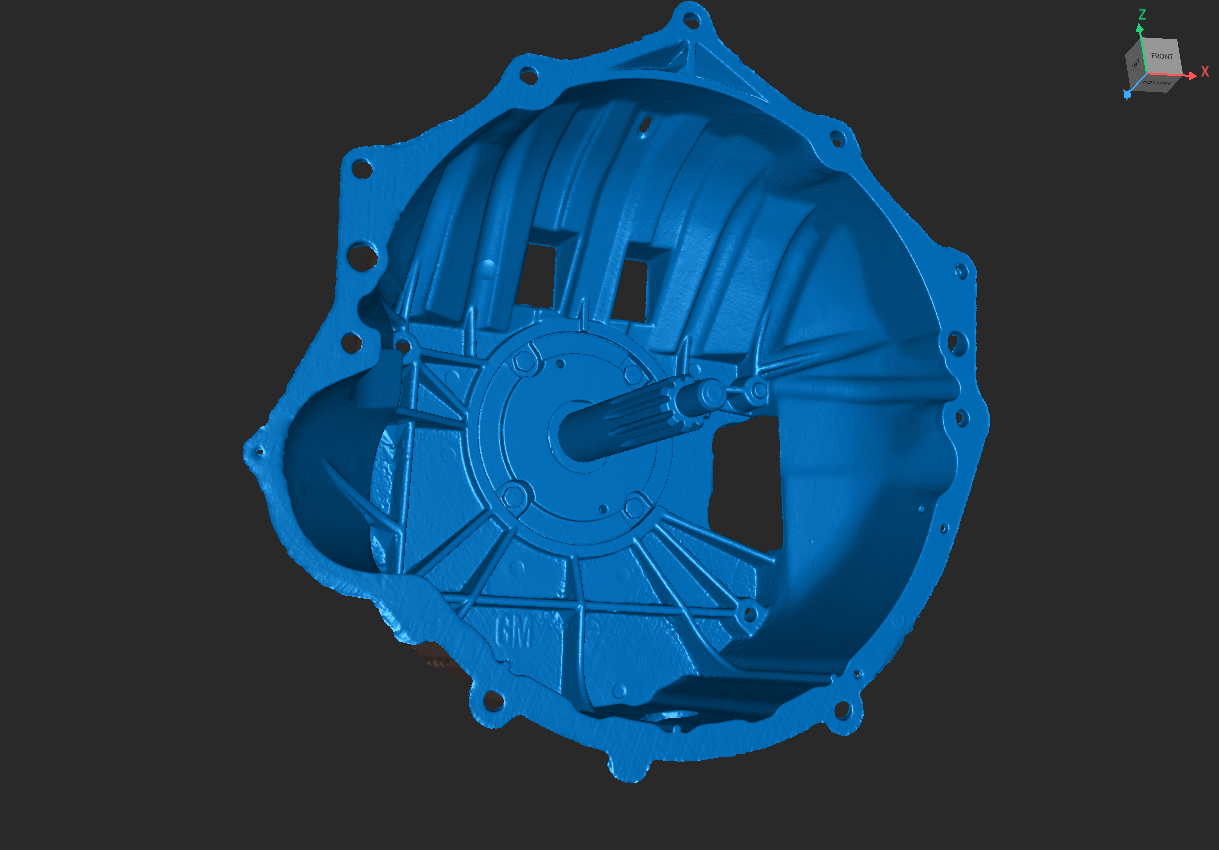

3D scan of a GM NV4500 with input shaft
A Manual Transmission That Belongs Behind a Duramax
The NV4500 has earned its reputation for a reason — simplicity, durability, and proven real-world performance.
But pairing one properly to a Duramax platform means treating the entire system as an ecosystem, not just an adapter plate.
Every supporting component matters:
Clutch geometry
Throwout bearing system integration
Pilot bearing adaptation
Driveline alignment
That’s been the focus of this project from day one.
Engineered for Real Power
To support the torque demands expected from modern Duramax builds, the system is being developed around a single-mass South Bend clutch package selected specifically to complement the operating range and practical torque limits of the NV4500.

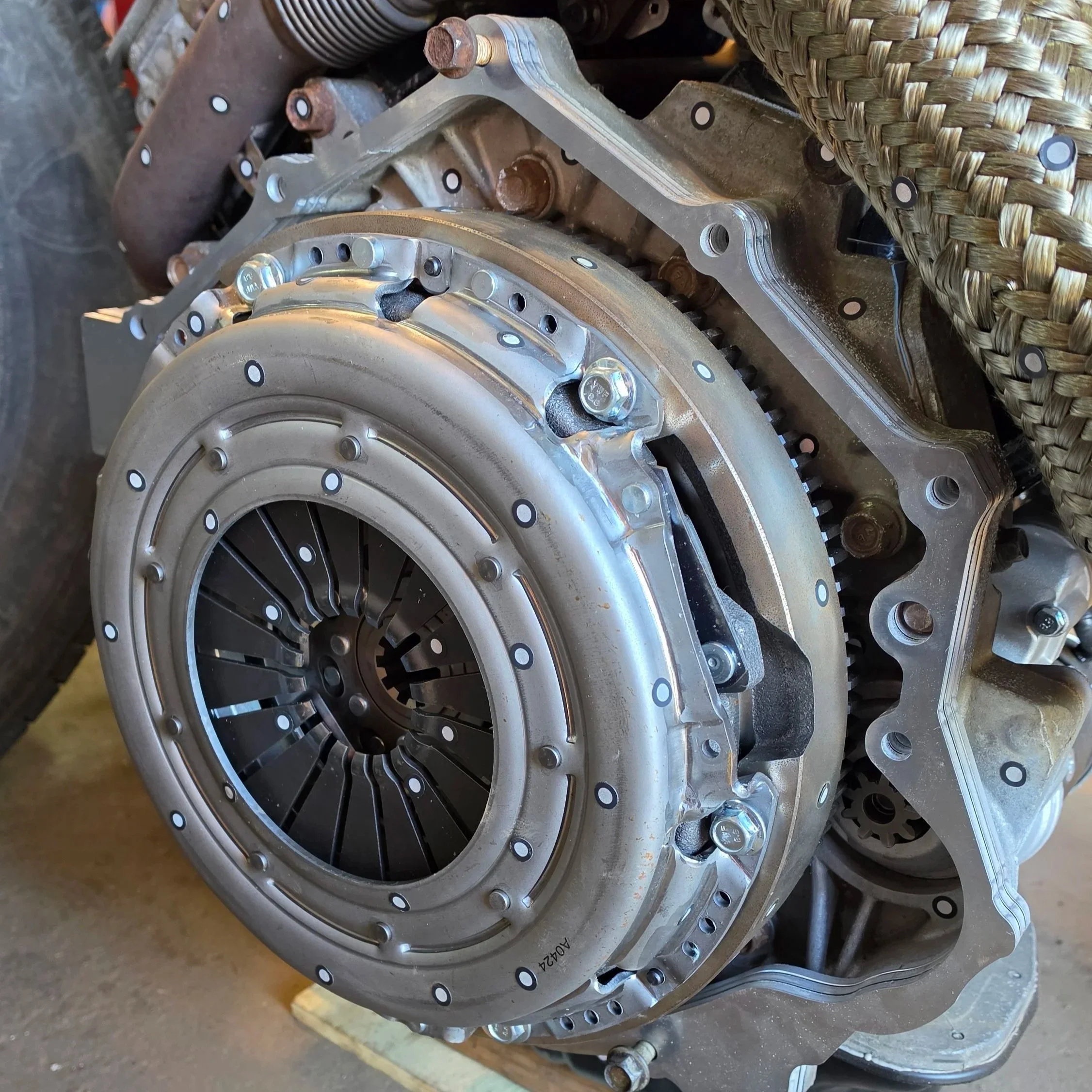

2006 LBZ with bellhousing adaptor for NV4500 installed
Rather than chasing unnecessary extremes, the goal was balance:
Excellent daily/towing drivability
Serviceable components
Capacity aligned with what the transmission can realistically support
The result is a package engineered to work together as a complete system.
What Comes Next
We’re currently finalizing the remaining components for a hydralic throwout bearing system and validation work before release.
Our goal is simple: deliver a manual swap solution that installs cleanly, performs predictably, and feels like something that could have come from the factory.
More details, testing updates, and release information are coming soon.
The Duramax manual swap many people have wanted is getting closer.
— Lambert Performance Labs
